Product Detail

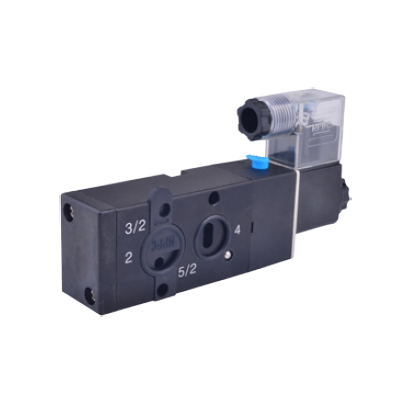

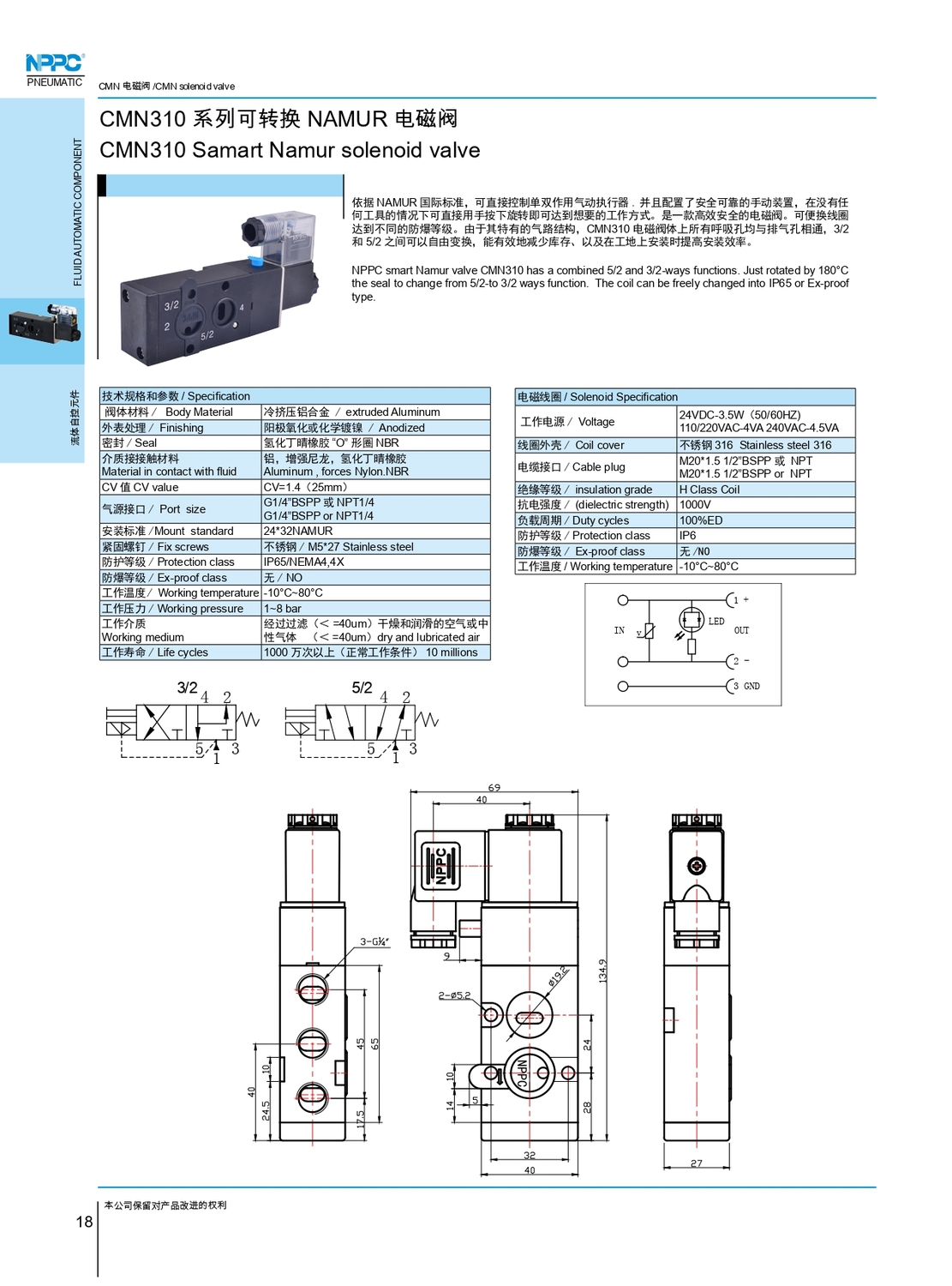

CMN310 Smart Namur solenoid valve
Share to：

CMN310 Smart Namur solenoid valve

Body Material： extruded Aluminum
Finishing： Anodized
SeaL： NBR
Material in contact with fluid： Aluminum , forces Nylon.NBR
CV value： CV=1.4（25mm）
Port size： G1/4”BSPP or NPT1/4
Mount standard： 24*32NAMUR
Fix screws： M5*27 Stainless steel
Protection class： lP65/NEMA4,4X
Ex-proof class： NO
Working temperature： -10°C~80°C
Working pressure： 1~8 bar
Working medium： （＜ =40um）dry and lubricated air
Life cycles： 10 millions
