Product Detail

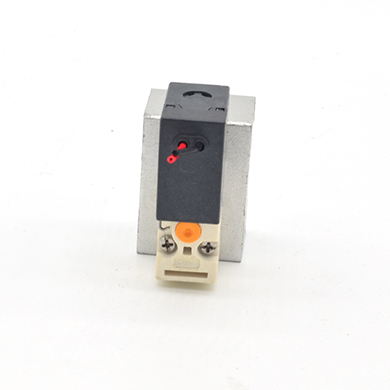

Directly operated solenoid valves Series NF
Share to：

Directly operated solenoid valves Series NF

Fluid： Air
Operating temperature： -5 ～ 50℃
Response time： 10 ms or less
Max.Operating frequency： Cycle/Sec
Min.Operating frequency： （Cycle）/ (Ddy)
Lubrication： Not lubrication
Manual override： Non-locking type
Working-pressure： 0 ～ 0.7MAa
Voltage： 24V DC、12V DC、6V DC
Voltage tolerance： ±10%
Protection class： IP50
Duty cycle： ED 100%
Mounting： Screws
Insulation class： H
Installation： In any position
产品详情


Series NF directly operated solenoid valves are aveilable as 3/2-way either NC or NO versions.

Both versions can be mounted on single sub-bases or manifolds and they are equipped with amanual override

which makes the plants seting easier.

Energy saving and environmental protection

The power consumption of the standard type is only 1W,and the energy saving type is only 0.3W.

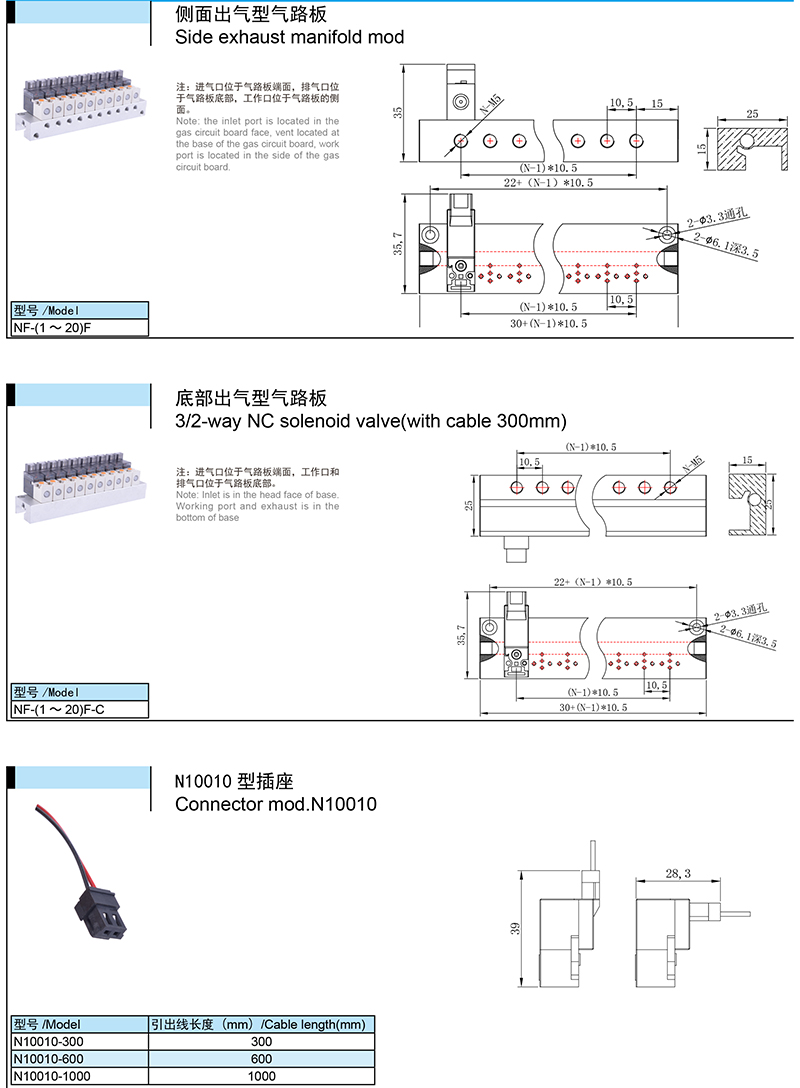

新样本册-49 拷贝.jpg新样本册-51.jpg                                                                                                                                                                                                              微信图片_20190819155407.jpg
