Product Detail
Directly operated solenoid valves Series NE
Share to：

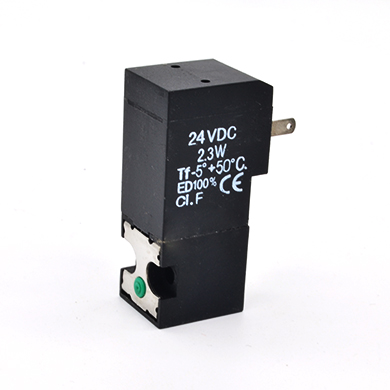

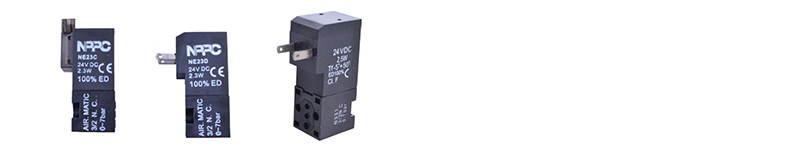

Directly operated solenoid valves Series NE

Fluid： Air
Operating temperature： -5 ～ 50℃
Response time： 10 ms or less
Max.Operating frequency： Cycle/Sec
Min.Operating frequency： （Cycle）/ (Ddy)
Lubrication： Not lubrication
Manual override： Non-locking type
Working-pressure： 0 ～ 0.7MAa
Voltage： 24V DC、12V DC、6V DC
Voltage tolerance： ±10%
Protection class： IP50
Duty cycle： ED 100%
Mounting： By means of screws
Insulation class： H
Installation： In any position
产品详情

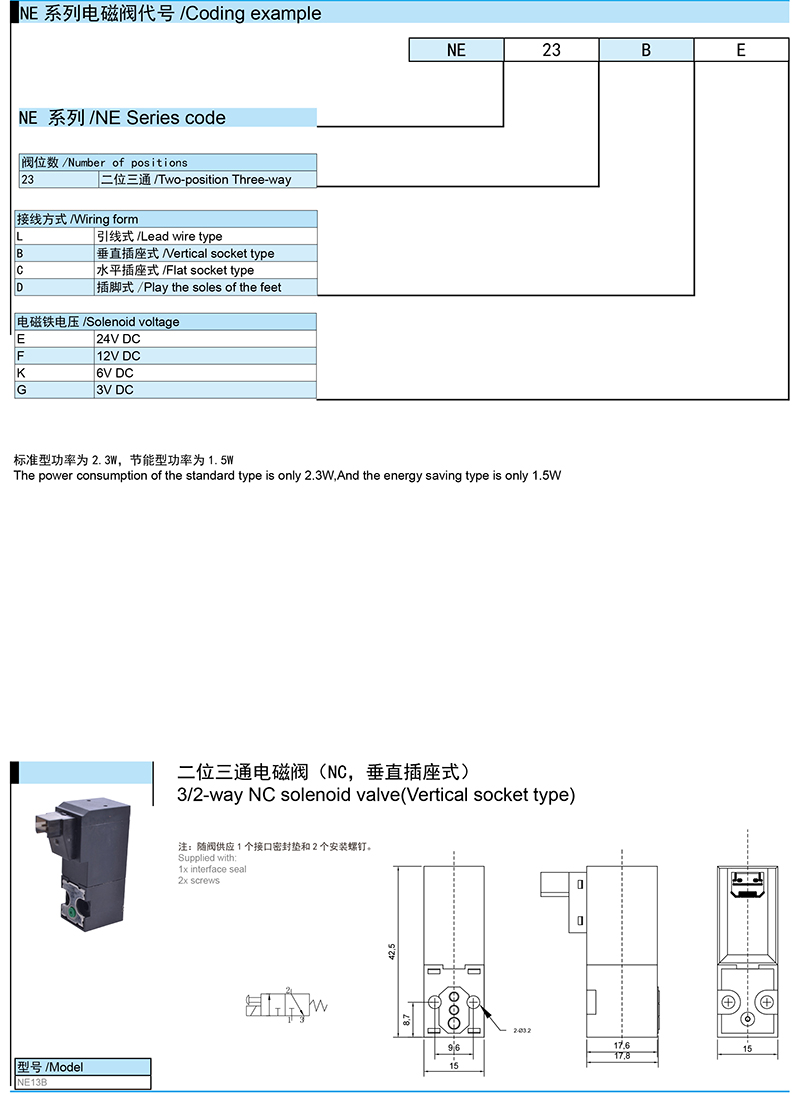

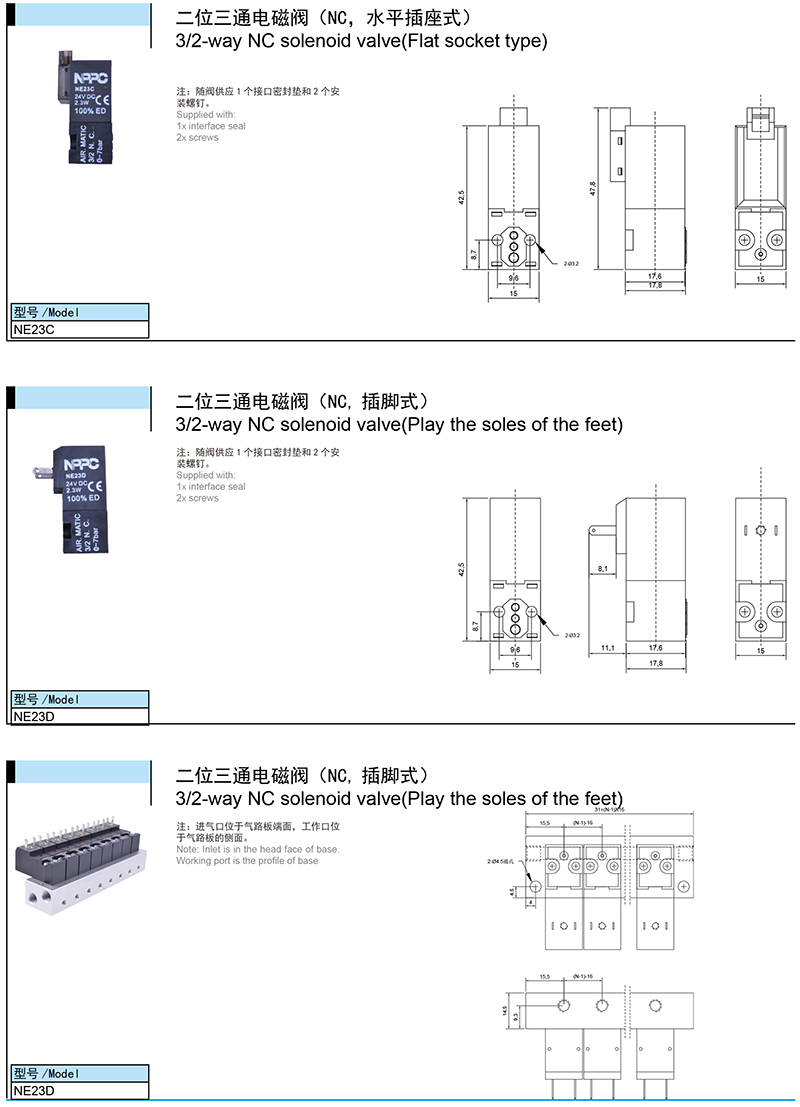

The directly operated solenoid valves series ND are available as 3/2-way.NC version. smartdesign.

Widely used in Machinery. electronics. medical.Knitted.semiconductor and other aircontrol field.

It can be fitted in the printed circuit
